GCP에서 VM 인스턴스를 테라폼 모듈로 관리하고 등록하는 방법을 설명하려고 한다.



Jenkins를 VM 인스턴스를 등록한다고 가정하고 생성하였다.



1.vm_instance.tf 파일 정보

부팅 디스크 및 인스턴스 설정에 대해 작성하고 있는데 추후에는 모듈화된 디스크로 적용해볼 생각이다.

module "jenkins_instance" {
  source         = "./modules/compute_instance"

  #공통 설정
  zone           = "asia-northeast3-a"
  project        = "pjt-an3-dev-vm-2"


  #부팅 디스크 설정
  boot_disk_name = "jenkins-disk"
  image          = "rocky-linux-8-optimized-gcp-v20240611"
  disk_type      = "pd-standard"
  disk_size_gb   = 50

  # 인스턴스 설정
  instance_name  = "jenkins"
  machine_type   = "e2-medium"
  tags           = ["sgtag-test-80"]
  subnetwork     = module.sbn-an3-net-1.google_compute_subnetwork
  nat_ip         = "35.216.10.89"
  labels         = {
    name = "jenkins"
  }
}





2. VM 인스턴스 생성시 사용되는 모듈 정보이다.

1) main.tf

인스턴스가 생성되는 부분으로 boot_disk를 참조하고 1.에서 전달 받은 정보로 VM을 구성하였다.

주석 처리된 부분은 추후 사용할 기능으로 일단 설정하지 않았다.

resource "google_compute_instance" "instance" {
  name         = var.instance_name
  machine_type = var.machine_type
  zone         = var.zone
  project      = var.project

  boot_disk {
    source = google_compute_disk.boot_disk.self_link
    auto_delete = false
  }


  tags = var.tags

  network_interface {
    subnetwork = var.subnetwork

    # access_config {
    #   nat_ip       = var.nat_ip
    #   network_tier = "STANDARD"
    # }
  }

  labels = var.labels

  lifecycle {
    ignore_changes = [metadata]
  }

  # service_account {
  #   # Google recommends custom service accounts that have cloud-platform scope and permissions granted via IAM Roles.
  #   email  = google_service_account.default.email
  #   scopes = ["cloud-platform"]
  # }
}



2)variables.tf

1.에서 전달 받은 값을 저장 받는다.

variable "instance_name" {
  description = "인스턴스 이름"
  type        = string
}

variable "machine_type" {
  description = "머신 타입"
  type        = string
}

variable "zone" {
  description = "존"
  type        = string
}

variable "project" {
  description = "프로젝트 ID"
  type        = string
}

variable "image" {
  description = "이미지"
  type        = string
}

variable "disk_size_gb" {
  description = "디스크 크기 (GB)"
  type        = number
}

variable "tags" {
  description = "태그 목록"
  type        = list(string)
}

variable "subnetwork" {
  description = "서브넷워크"
  type        = string
}

variable "nat_ip" {
  description = "NAT IP"
  type        = string
}

variable "labels" {
  description = "라벨"
  type        = map(string)
  default     = {}
}

variable "disk_type" {
  description = "디스크 타입"
  type        = string
}

variable "boot_disk_name" {
  description = "부팅 디스크 이름"
  type        = string
}




3)boot_disk.tf

부팅 디스크 정보를 받아와 디스크를 생성하도록 하였다.

resource "google_compute_disk" "boot_disk" {
  name  = var.boot_disk_name
  type  = var.disk_type
  zone  = var.zone
  image = var.image
  size  = var.disk_size_gb
  project = var.project
  labels = {
    environment = "dev"
  }
  physical_block_size_bytes = 4096
}






3. 테라폼 명령어  실행

terraform apply -target module.jenkins_instance



부팅디스크

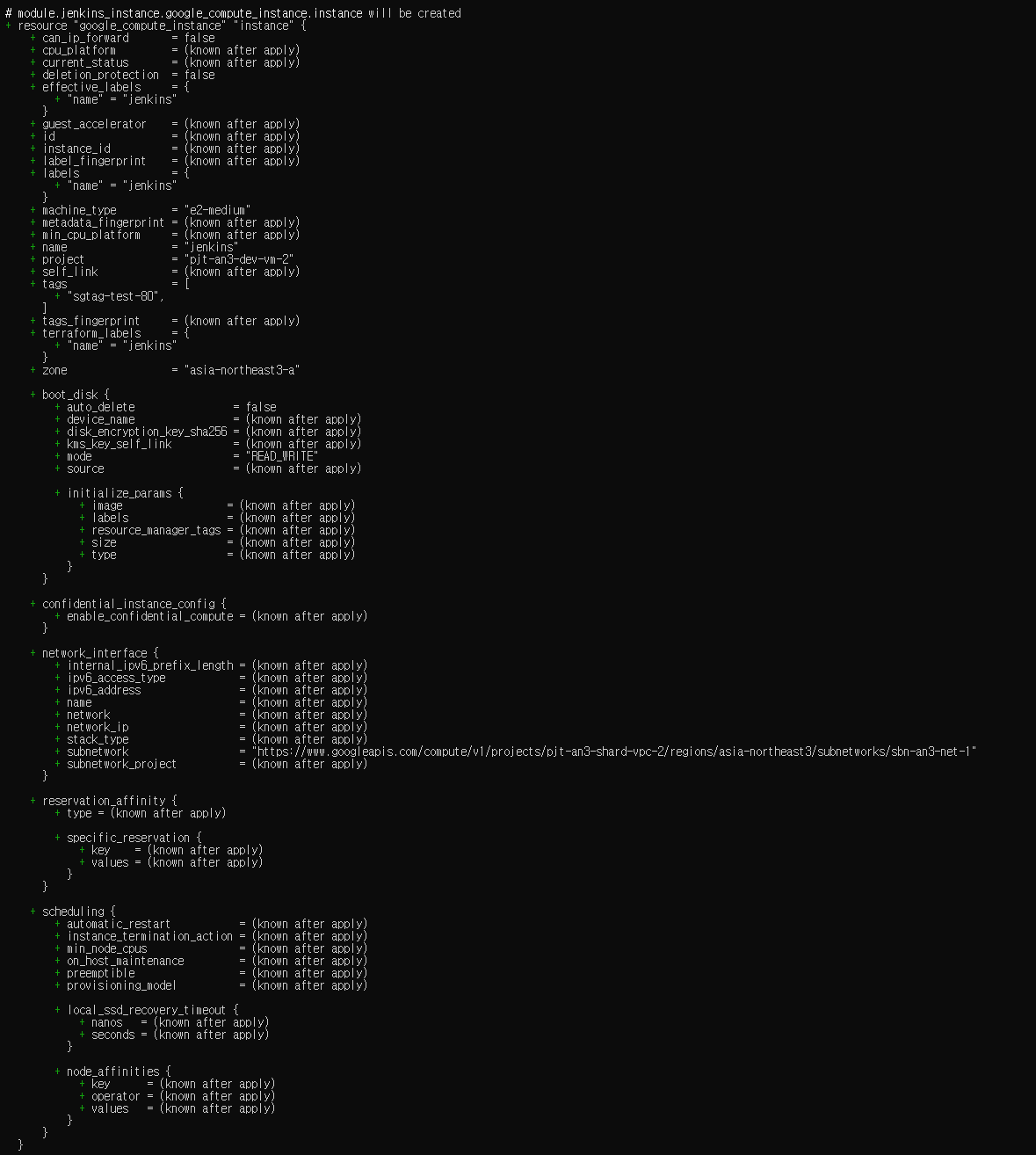

VM 인스턴스 정보

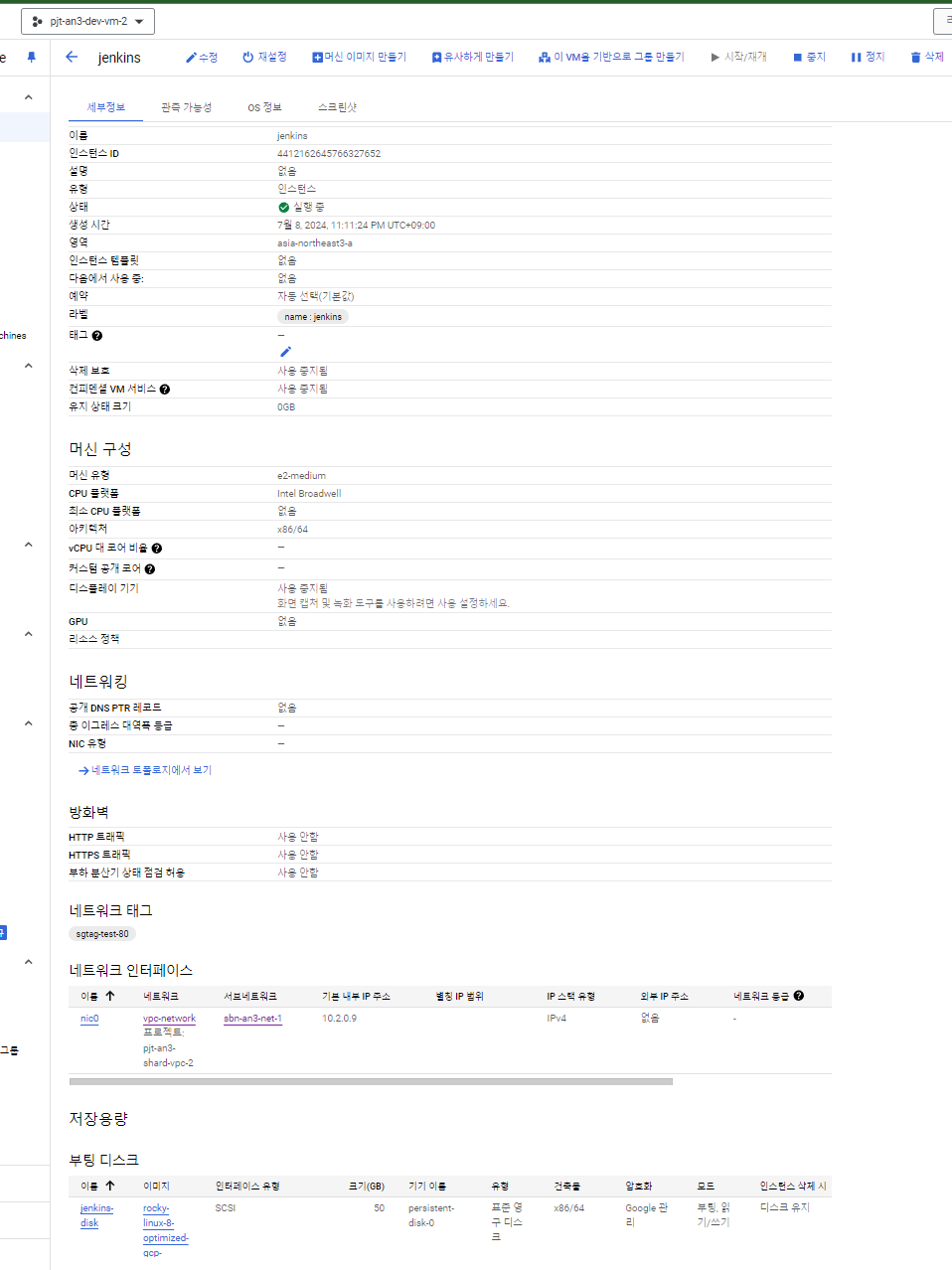

4. GCP 콘솔에서 생성된 자원 확인
